参数 |
数值 |
|
Ytterbium Lifetime (µs) |
950 |
|
Erbium Lifetime (ms) |
9 |
|

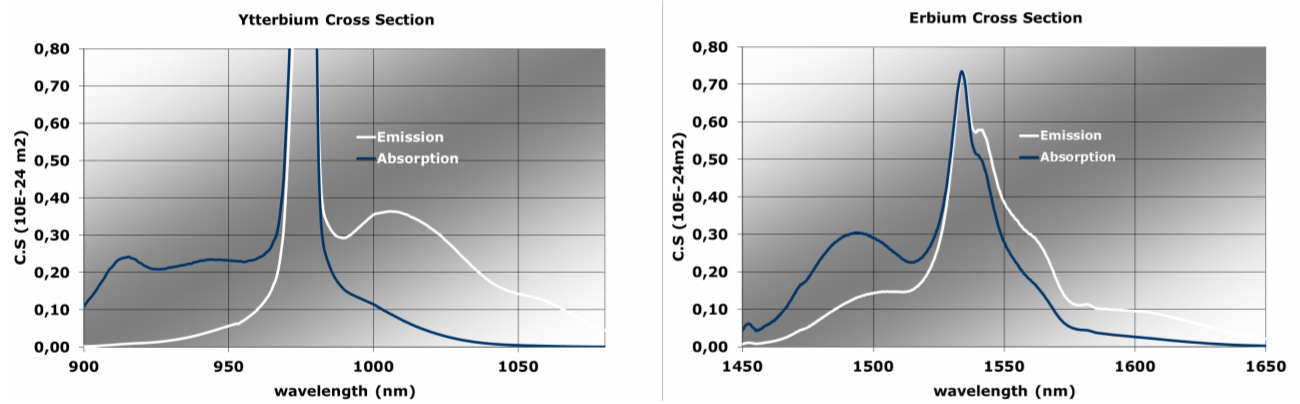

Yb Absorption Cross Section @ 915nm (m²) |
2,51E-25 |
|
Yb Absorption Cross Section @ 975nm (m²) |
1,42E-24 |
|
Er Absorption Cross Section @ 1536 nm (m²) |
5,90E-25 |
|
Transfer constant K (m3/s) |
1,00E-22 |
|
型号 |
芯径 (µm) |
芯吸收 |
Core NA |
包层吸收 |
包层直径 |
涂层直径 |
|
IXF-2CF-AG-EY-O-5-105-125-HTC |
5 +/- 0.5 |
75 +/- 15 |
0.19 |
3.7 +/- 0.5 |
125 +/- 3 |
215 +/- 15 |
|
IXF-2CF-EY-O-6-130-LNF-L1 |
6 +/- 0.5 |
25 - 35 |
0.19 |
2.4 - 3.6 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-6-130-LNF-L2 |
6 +/- 0.5 |
35 -45 |
0.19 |
3.2 - 4.8 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-6-130-LNF-RAD |
6 +/- 0.5 |
> 30 |
0.19 |
> 2.0 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-AG-EY-O-9-105-125-HTC |
8 +/- 0.5 |
70 +/- 10 |
0.14 |
9.0 +/- 2.0 |
125 +/- 3 |
215 +/- 15 |
|
IXF-2CF-EY-O-10-130 |
10 +/- 0.5 |
65 - 85 |
0.19 |
8.0 - 12 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-12-130-L1 |
12 +/- 1 |
40 - 50 |
0.19 |
8.0 - 10 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-12-130-L2 |
12 +/- 1 |
45 -65 |
0.19 |
10 - 14 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-12-130-L3 |
12 +/- 1 |
60 -80 |
0.19 |
12 - 18 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-12-130-POP |
12 +/- 1 |
> 40 |
0.19 |
> 10 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-12-130-HPA |
12 +/- 1 |
> 40 |
0.19 |
> 8.0 |
125 +/- 3 |
210 +/- 15 |
|
IXF-2CF-EY-O-12-130-RAD |
12 +/- 1 |
50 - 70 |
0.19 |
9.2 - 14 |
125 +/- 3 |
210 +/- 15 |
|
IXF-2CF-EY-O-17-130-L1 |
17 +/- 1 |
40 - 50 |
0.19 |
16 - 20 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-17-130-L2 |
17 +/- 1 |
> 45 |
0.19 |
20 - 24 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-O-25-250 |
25 +/- 1 |
> 45 |
0.08 |
> 12 |
250 +/- 10 |
345 +/- 20 |
|
IXF-2CF-EY-O-30-300 |
30 +/- 1 |
> 75 |
0.09 |
> 12 |
300 +/- 10 |
470 +/- 20 |
|
保偏光纤 |
||||||
|
IXF-2CF-EY-PM-6-130-LNF-L1 |
6 +/- 0.5 |
> 25 |
0.19 |
> 2.0 |
125 +/- 3 |
125 +/- 3 |
|
IXF-2CF-EY-PM-6-130-LNF-L2 |
6 +/- 0.5 |
35 - 45 |
0.19 |
3.2 - 4.8 |
125 +/- 3 |
125 +/- 3 |
|
IXF-2CF-EY-PM-6-130-LNF-RAD |
6 +/- 0.5 |
> 30 |
0.09 |
> 2.0 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-PM-12-130-L2 |
12 +/- 1 |
45 - 65 |
0.19 |
10 - 14 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-PM-12-130-0.10 |
12 +/- 0.5 |
55 - 75 |
0.10 |
10 - 14 |
125 +/- 3 |
245 +/- 15 |
|
IXF-2CF-EY-PM-12-130-HPA |
12 +/- 1 |
> 40 |
0.19 |
> 8.0 |
125 +/- 3 |
210 +/- 15 |
|
IXF-2CF-EY-PM-12-130-RAD |
12 +/- 1 |
40 - 60 |
0.19 |
8.0 - 12.4 |
125 +/- 3 |
210 +/- 15 |
|
IXF-2CF-EY-PM-15-160 |
15 +/- 1 |
45 - 70 |
0.19 |
> 8.0 |
160 +/- 3 |
255 +/- 15 |
|
IXF-2CF-EY-PM-25-250 |
25 +/- 2 |
70 - 110 |
0.085 |
12.8 - 18 |
250 +/- 10 |
340 +/- 15 |
|
IXF-2CF-EY-PM-30-300 |
30 +/- 1 |
> 70 |
0.08 |
> 11 |
300 +/- 10 |
470 +/- 20 |
|
铒镱三包层光纤 |
||||||
|
IXF-3CF-EY-O-5-105-125 |
5 +/- 0.5 |
70 -80 |
0.19 |
2 - 3 |
125 +/- 3 |
215 +/- 15 |
